Casella pulleys - retraction with diesel engine
Product Description
Tubular — roller rain systems CasellaHarvesting with diesel engine are a productive solution for fast and optimal irrigation. A similar watering solution is necessary for PE pipes with a size greater than Ø140, since the diesel engine guarantees reliable hose retraction in all conditions.
Diesel engine driven pulleys feature a hydraulic system for high efficiency when retracting the hose, facilitating operation and moving the machine quickly. The good stability of the tube-roller rain system is also ensured by a rotary platform fixed on the ground (except for the EXP.M model), and the reel trolley can be with 2, 3 or 4 wheels. Casella Reelsare seasonally movable and can be directly supplied with water from an existing water source. The manufacturer Casella, in cooperation with NIK, has the opportunity to provide the necessary equipment in a short time for production and delivery, allowing
farmers to respond quickly to the need for an irrigation facility for the current irrigation season.
Main features of Casella reels
Ideal system for efficient energy saving
This type of machine uses a small diesel engine for both hose retraction and hydraulic control. This innovation allows the pressure created by the pump to be used solely and exclusively for irrigation with a minimum average diesel fuel consumption of 300 g/hour. This is the only system that allows the introduction of manure or the use of wastewater at a high rate of harvesting.
Hose diameter and length
Various configurations of Casella tubular and roller rain systems are available with hose diameters from 82 to 180 mm and hose lengths from 270 to 780 m.

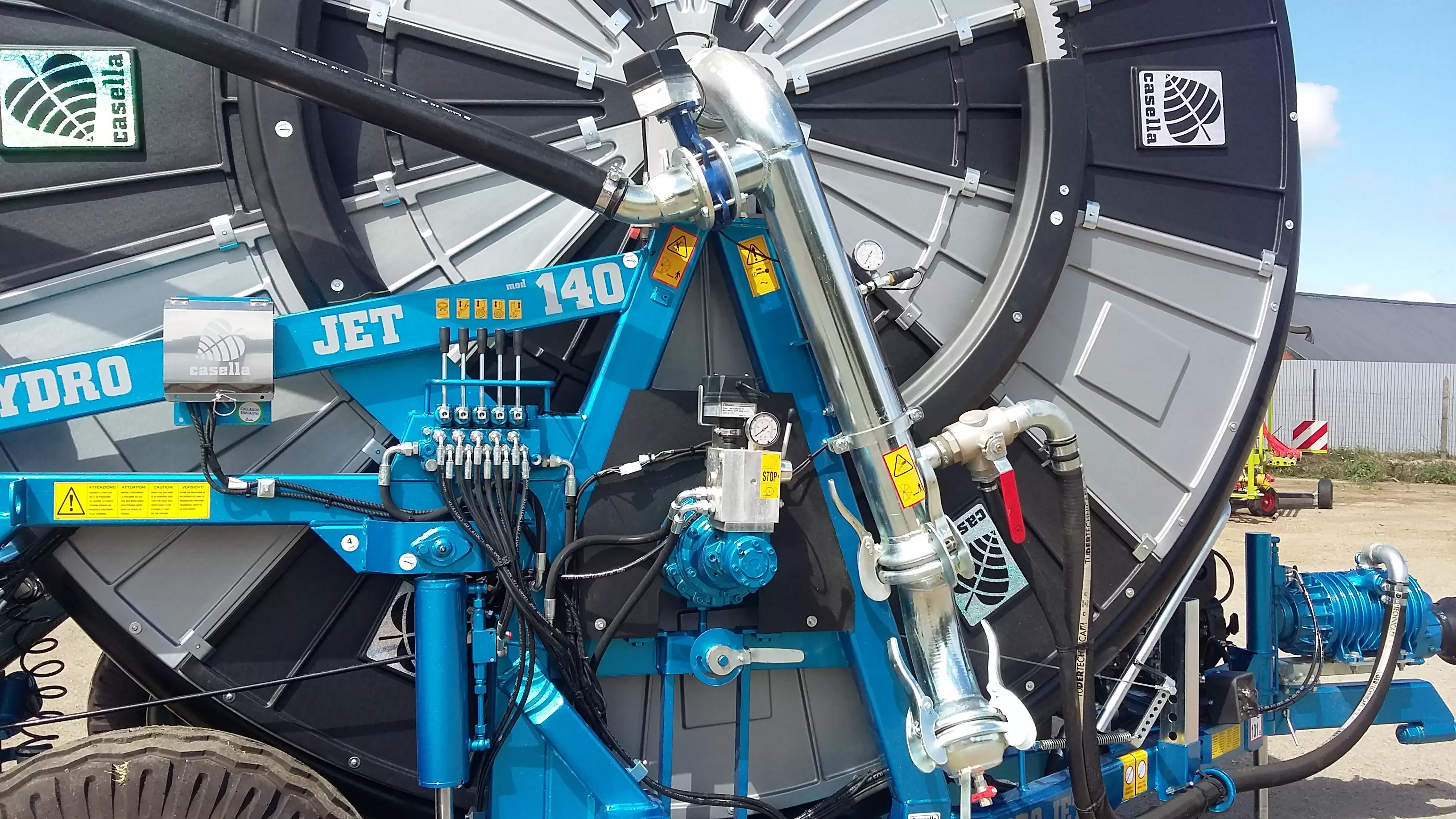

Hydraulic system
The hydraulic system with a distributor of up to 7 levers ensures maximum reliability, efficiency and practicality in operation.The hydraulic system of the Casella pulleys with retraction with a diesel engine consists of:
- power steering front stabilizer support;
- the ability to lower the wheels in a transport position or raise them for a working position, which allows turning the spool 360° (except for the EXP.M model);
- rear supports stabilizing the machine to the ground, which provide it with stability in the working position.
HY-TURB M spool
The PLS model from Casella with retraction from a diesel engine includes a platform, and the maximum length of the PE hose is according to the corresponding diameter 125/800 — 140/780 — 150/650 — 160/520 — 180/430. Thanks to the single-cylinder PE hose retraction motor, which is standard on all models of pulleys with retraction from a diesel engine, you save a huge amount of energy.
Advantages:
- Bottom platform and 360-degree hydraulic rotation on it
- Gun with nozzles of different diameters
- Hydraulic Wheelbarrow Lift
- Independent hydraulic rear stabilizers
- Front Hydraulic Jack
- Front hydraulic stabilizers
- Retracting speed control computer
- 4 meters high pressure flexible hose for connection
- Galvanized wheelbarrow with 4 wheels (rubber or iron)
- PE hose drain compressor 11,000 liters
- Tires 18R22.5
Technical data
HY-TURB L spool
The PL pulley with retracting from a diesel engine with platform has a maximum length of PE hose according to the corresponding diameter 125/650 — 140/550 — 150/500 — 160/350.
Advantages:
- Retracting PE hose with single cylinder engine
- Bottom platform and 360-degree hydraulic rotation on it
- Sprinkler with nozzles of different diameters
- Hydraulic Trolley Lift
- Independent Hydraulic Rear Anchors/Clamps
- Mechanical or hydraulic front anchors/clamps
- Front Hydraulic Piston
- Rewinding speed control computer
- 4 meters high pressure flexible hose for connection
- Galvanized wheelbarrow with 2 or 4 wheels (rubber or iron)
- PE hose drain compressor 8.000 liters
- Tires 385-65R22.5 or 18R22.5
Technical data
LLS Reel
The HY-TURB L spool of Casella has a maximum length of PE hose according to the corresponding diameter 110/620 — 120/500 — 125/480. HY-TURB L there is a second additional bypass for high water flows (1800 liters/min — 108 m3/h), as well as a double opening for water.
Advantages:
- Hot Dipped Galvanized Chassis
- Manual rotation of the upper chassis with several positions (from 0° to 270°)
- Front Hydraulic Jack
- Front mechanical stabilizers
- Wheelbarrow with 3 wheels
- Pistol with nozzles
- 4 meters high pressure flexible hose for connection
- 4 gears + P.T.O links
- Retracting speed control computer
Technical data
LL Reel
Pulley with retraction from a diesel engine, with a platform. Maximum length of PE hose according to the corresponding diameter 120/450 — 125/430 — 140/400.
Advantages:
- Retracting PE hose with single cylinder engine
- Bottom platform and 360-degree hydraulic rotation on it
- Gun with nozzles of different diameters
- Hydraulic Wheelbarrow Lift
- Independent hydraulic rear stabilizers
- Front Hydraulic Jack
- Front hydraulic stabilizers
- Retracting speed control computer
- PE Hose Drain Compressor
- 4 meters high pressure flexible hose for connection
- Galvanized wheelbarrow with 2, 3 or 4 wheels (rubber or iron)
- Tires 11.5/80-15.3
Technical data
Pulley L
The reel L with retracting from a diesel engine with platform, has a maximum length of PE hose according to the corresponding diameter: 1110/500 — 120/400 — 125/330.
Advantages:
- Retracting PE hose with single cylinder engine (huge energy saving)
- Bottom platform and 360-degree hydraulic rotation on it
- Galvanized wheelbarrow with 2,3 or 4 wheels (rubber or iron)
- Gun with nozzles of different diameters
- Hydraulic Wheelbarrow Lift
- Independent hydraulic rear stabilizers
- Front Hydraulic Jack
- Front hydraulic stabilizers
- Retracting speed control computer
- PE Hose Drain Compressor
- 4 meters high pressure flexible hose for connection
- Tires10.0/75-15.
Reel Exp M
The Exp M reel with retraction from a diesel engine with a double chassis, has a maximum length of PE hose according to the corresponding diameter: 90/500 — 100/500 — 110/400.
Advantages:
- Retracting PE hose with single cylinder engine
- Double chassis and swivel upper frame
- Galvanized wheelbarrow with 3 (rubber or iron)
- Gun with nozzles of different diameters
- Hydraulic Wheelbarrow Lift
- Independent hydraulic rear stabilizers
- Retracting speed control computer
- 4 meters high pressure flexible hose for connection
- Tires 10.0/80-12
Technical data
Founded back in 1954. Casella is a leader in the construction of irrigation reels not only because of its quick response to ordering and delivery, but also because of the high quality and qualified after-sales service.
The main focus in the production of Casella reels is on quality, strength, ease of operation and minimal cost.
It was Casella who introduced the use of a small diesel engine to retract the spreader instead of a turbine. This innovation allows the pressure created by the pump to be used solely and exclusively for irrigation with a minimum average diesel fuel consumption of 300 g/hour. Thus, the cost of irrigation on an annual basis can be significantly reduced.
The company has a large production base, office building and spare parts warehouse with a total area of 75,000 m2. Thanks to this, Casella is able to provide the necessary equipment in an extremely short time for production and delivery, while guaranteeing high product quality and qualified after-sales service in cooperation with NIK.
