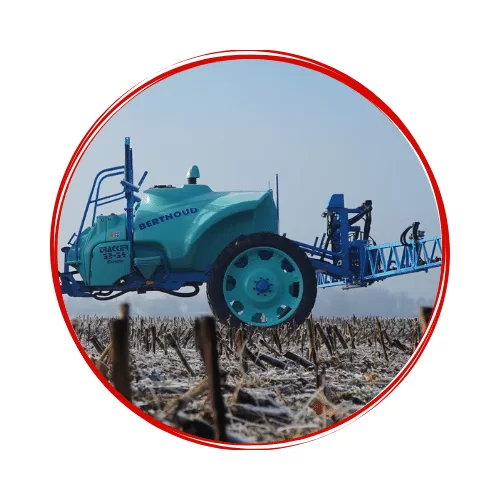

Attached sprayer Berthoud Tracker
Why choose the Berthoud Tracker attachment sprayer?
The Berthoud Tracker attachment sprayer is one of the most popular attachment models of the Berthoud brand. The sprayer is designed for work on uneven terrain, as the specialized Actiflex suspension compensates for unevenness and furrows in the field and protects the bars from strong vibrations.
A number of innovations created and patented by Berthoud are implemented in it. The tracker sprayer attachment model is available with a tank capacity of 3200 liters and two models of rods with a length of 18 to 32 meters, their model and length are optional.
Technical data
Innovative and fully balanced chassis
All sprayer configurations in the range possess:
- Metal chassis with protective H.R paint
- Spray control panel Berglogic
- Dualmatic system reducing residual amounts of solution in the system
- Side cover to protect the control panel Additional options in the configuration of the attachment model sprayer Berthoud Tracker
- Omega biturbine centrifugal pump with two working cycles and a capacity of 550l/min at a working pressure of 3 bar
- Pompa Volux with flow rate 240l/min or 320l/min
- Pompa BPwith flow rate 280l/min
Fully integrated equipment for optimal machine size
The bars with which the attached Tracker model is equipped are characterized by:
Axial
- Length from 18 to 32 meters
- Axial suspension with centre point, with springs and shock absorbers
- Independent unfolding of the outer arms of the bars for certain lengths
- Slope correction and variable geometry at specified lengths
- Automatic height control of the bars
Stability, management and integration of equipment
- The chassis consists of two large and widely spaced side rails and has a relatively low center of gravity to improve behavior on slopes
- ACTIFLEX suspension of the “S” version with springs and shock absorbers for effective load
- Main tank made of high-density polyethylene and capacity 3,200 liters with additional 5% for foaming
- The tank has a diamond bottom to minimize residue.
- Suction pipe for easy draining of the main tank
- Washing tank 330 liters
- A tracking hitch is available as an option to minimize impact on crops Attached to the tractor's lifting arms, it provides maximum stability on a level and
sloping terrain.
Suspension
Sprinklers are available with two types of suspension: Standard and Actiflex.
Suspension Actiflexis a patent developed by the engineering team Berthoud. It consists of a spring and shock absorbers operating on the principle of variable resistance, which keep the body and rods independent of the wheels of the machine and the bumps through which they pass. This type of suspension is suitable for heavily hilly terrain and massifs with bumps.
Technical advantages:
- The only suspension on the market with a spring to obtain variable stiffness depending on the load and tension of the axle
- Fully mechanical suspension
- Constant adaptation to the load
- It requires very little maintenance and provides real comfort and quality of work!
- Exclusive from BERTHOUD for optimal comfort
The standard suspension ensures good handling of the machine in the field, while at the same time offering a maximally simplified, maintenance-free construction. The behavior of the bar is excellent on flat terrain and larger blocks.
Explore an interactive model catalog
Clients about us
Years ago, I trusted the company Nick in addition to the topic of navigation and autopilots, but also to the topic of spraying. We have been using Berthoud Tracker for the third year now and things are going in a very good way.
“I chose the Berthoud sprayer because it is very productive and precise. When spraying, it is very important to have sectional control. When you overapply a fungicide or herbicide to the plant, it burns. This is avoided by sectional control. The Berthoud sprayer offers all the new technologies that are available on the market. We have been working with her for a year, and I already have observations on the operation of the machine. The precision it achieves, together with the Trimble navigation system, plus all the other factors such as suspension, shock absorbers, etc. make the work easier and much more precise”
Years ago, I trusted the company Nick in addition to the topic of navigation and autopilots, but also to the topic of spraying. We have been using Berthoud Tracker for the third year now and things are going in a very good way.
With more than 120 years of presence on the market, the French manufacturer Berthoud is among the leaders in the production of high-tech sprayers. The portfolio of the company, founded in 1895, includes a large selection of self-propelled, trailer and canopy sprayers with wide application in agriculture.
Aware of the need for continuous development and improvement, every year Berthoud invests in the activities of the company's research team for the development and patenting of innovative technologies, which are subsequently implemented in the new machines. Thus, the French manufacturer ensures the continuous improvement of the product range by applying the latest innovations in the industry.
All Berthoud sprayers comply with the established international standards for integrated agricultural methods, while at the same time being designed in such a way as to protect nature and the crops grown as much as possible.
“Our main goal is to help farmers grow a high quality crop. The increasing population and, at the same time, the limited agricultural area make it necessary to work with higher efficiency for better results”, summarize from Berthoud's team.
